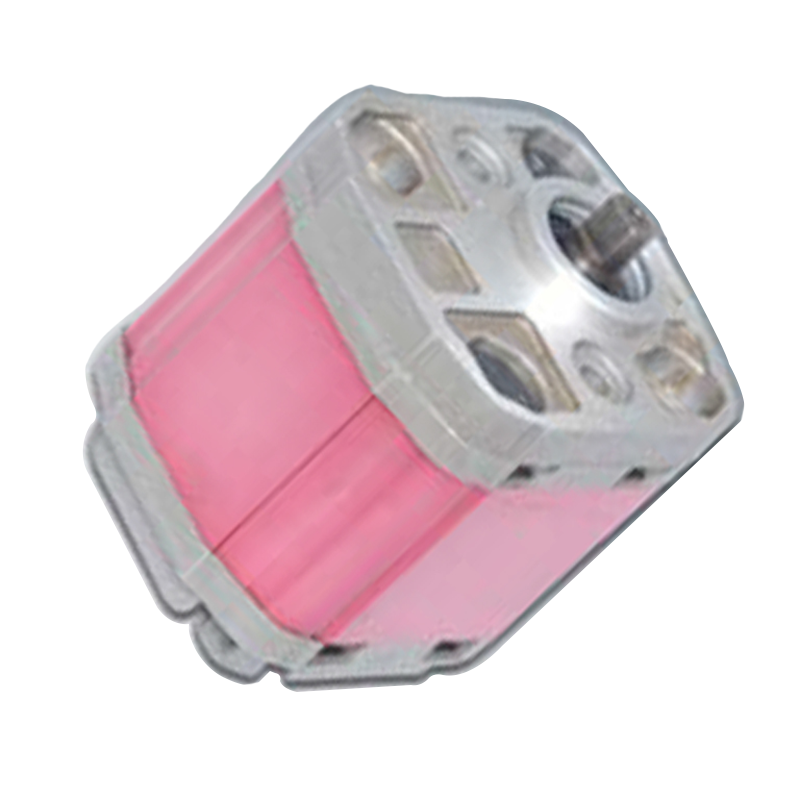

Feature: Pressure compensation pump, reversible work, small-displacement, small appearance, oilrelief inside and supply oil.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
No. Type Displacement (ml/r) Pressure(Mpa) Rotating Speed (r/mm) Oil Viscosity v50 (Cst) Oil Pollution (Tag) Volumetric Efficiency (%) Weight (kg)
Rated Max
1 CBTS2-G0.17Q 0.17 21 28 500～4000 7～70 14/11～19/16 88 0.41
2 CBTS2-G0.25Q 0.25 21 28 500～4000 7～70 14/11～19/16 88 0.41
3 CBTS2-G0.45Q 0.45 21 28 500～4000 7～70 14/11～19/16 90 0.43
4 CBTS2-G0.57Q 0.57 21 28 500～4000 7～70 14/11～19/16 90 0.43
5 CBTS2-G0.76Q 0.76 21 28 500～4000 7～70 14/11～19/16 92 0.45
6 CBTS2-G0.98Q 0.98 21 28 500～4000 7～70 14/11～19/16 92 0.47
7 CBTS2-G1.27Q 1.27 21 28 500～4000 7～70 14/11～19/16 92 0.48
8 CBTS2-G1.52Q 1.52 21 28 500～4000 7～70 14/11～19/16 94 0.5
9 CBTS2-F2.30Q 2.30 16 21 500～3000 7～70 14/11～19/16 94 0.55
