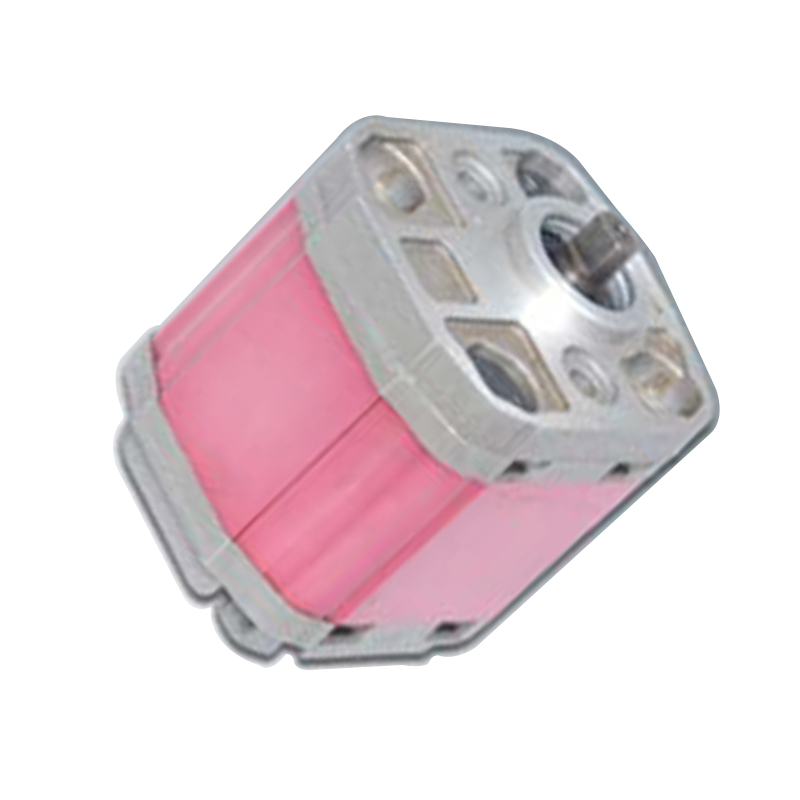

Features:Pressure compensation reversible pump, high working pressure, small-displacement, oilrelief outside.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBTS-G0.17F | 0.17 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.41 |
| 2 | CBTS-G0.25F | 0.25 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.41 |
| 3 | CBTS-G0.45F | 0.45 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.43 |
| 4 | CBTS-G0.57F | 0.57 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.43 |
| 5 | CBTS-G0.76F | 0.76 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.45 |
| 6 | CBTS-G0.98F | 0.98 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.47 |
| 7 | CBTS-G1.27F | 1.27 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.48 |
| 8 | CBTS-G1.52F | 1.52 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 94 | 0.50 |
| 9 | CBTS-F2.30F | 2.30 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 94 | 0.55 |
