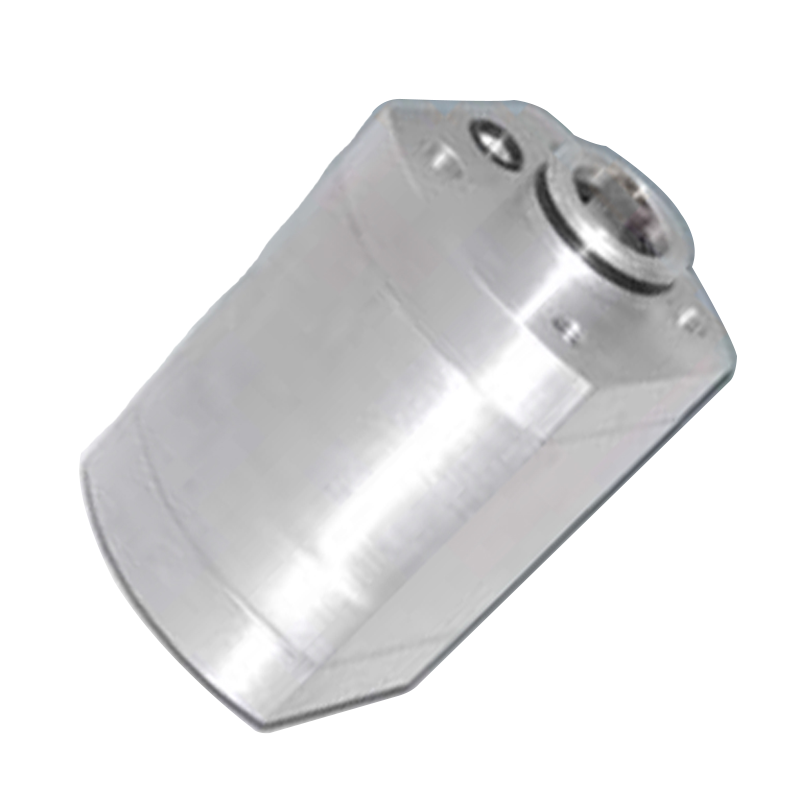

Features:Pressure compensation pump, high working pressure, small-displacement, small appearance.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | |
|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||
| 1 | CBKD-G1.6F | 1.6 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 90 |
| 2 | CBKD-G2F | 2.0 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 90 |
| 3 | CBKD-G02.5F | 2.5 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 4 | CBKD-G3F | 3.0 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 5 | CBKD-G3.3F | 3.3 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 6 | CBKD-G4F | 4.0 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 7 | CBKD-G4.2F | 4.2 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 8 | CBKD-G4.8F | 4.8 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 9 | CBKD-G5F | 5.0 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 10 | CBKD-G5.5F | 5.5 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 11 | CBKD-G5.8F | 5.8 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 12 | CBKD-G6.8F | 6.8 | 21 | 27.5 | 500～4000 | 7～70 | 14/11～19/16 | 92 |
| 13 | CBKD-G7.8F | 7.8 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
| 14 | CBKD-G8.8F | 8.8 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
| 15 | CBKD-G9.8F | 9.8 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
