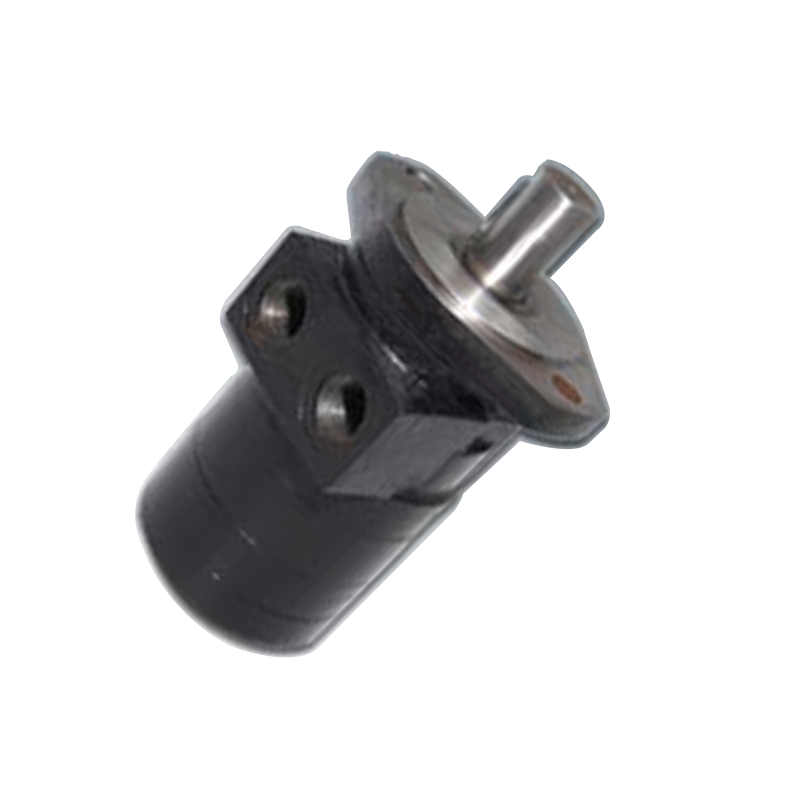

Features:BMK cycloid hydraulic motor is a kind of crescent cycloid gear pump within lowspeed, high torque hydraulic motor, its structure is simple and compact, good startup efficiency, steady speed, good short-term overload capability. Using the planedispensing oil structure which can automatic compensate for wear and tear, it hashigh efficiency and long life. Compared to other types of hydraulic motors of thesame displacement, it has smaller size, lighter weight and larger output torque.
Application:Mainly used in construction machinery, agriculture and forestry machinery,transportation, mining,machinery manufacturing, and other departments.
Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Output Torque (N.m) | Rotating Speed (r/mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | Rated | Max | Rated | Max | ||||
| 1 | BM-K46 | 46 | 15 | 21 | 80 | 110 | 43 | 52 | 185.5 |
| 2 | BM-K49 | 49 | 15 | 21 | 85 | 120 | 40 | 48 | 186 |
| 3 | BM-K66 | 66 | 15 | 21 | 115 | 160 | 30 | 36 | 189.5 |
| 4 | BM-K82 | 82 | 15 | 21 | 145 | 200 | 24 | 30 | 193 |
| 5 | BM-K120 | 120 | 15 | 21 | 210 | 295 | 16 | 22 | 201 |
| 6 | BM-K130 | 130 | 15 | 21 | 230 | 320 | 15 | 20 | 204 |
