General description
Equiped with a reversible gear pump, double P. Ochecke valves, relief valves and a tank etc. this power unit can drive a double acting cylinder to extend and retract without a directional solenoid valve. It is typically used inrecreational vehicles and machine tools.

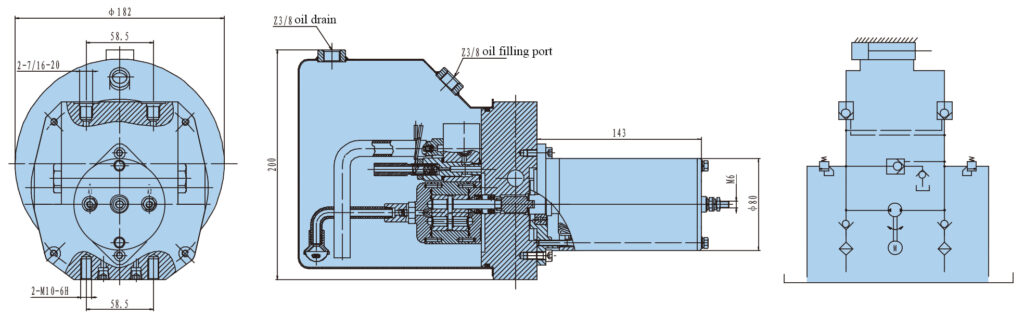

Outline Dimension
Model Specifications
No. Model Motor Volt Motor Power (KW) Rated Speed (RMP) Displacement (ml/r) System Pressure (MPa) Tank Capacity (L)
1 DYDD-0.45WAU-LWTO-32 12V DC 0.8 4500 0.45 16 1.8
2 DYDD-0.57XAU-LWTO-32 12V DC 0.8 4500 0.5 16 3.4
3 DYDD-0.76AAU-LWTO-32 12V DC 0.8 4500 0.76 16 6
Remarks: Please consult our sales engineer for the different pump displacement, motor power or tank capacity.
