General description
Consiting of gear pump, DC motor, multi-functions manifold, valves, tank, this power unit is for the controlling of a double acting cylinder with a pressure holding charateristic. It is used in the applications of tipper trailer, hydraulic hoist, press, etc.

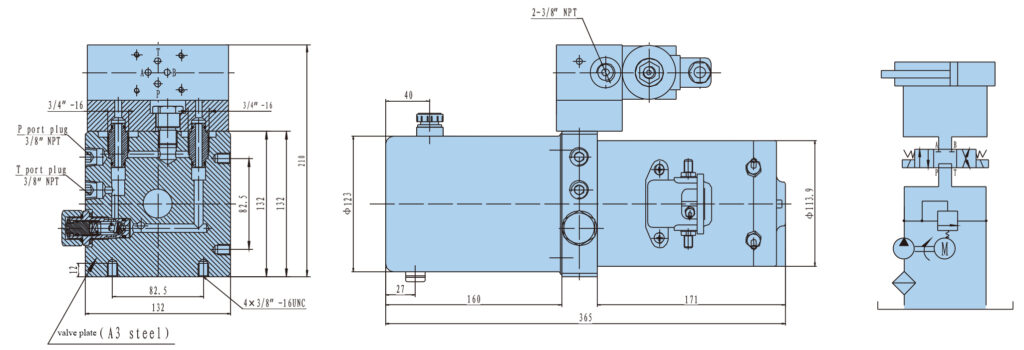

Outline Dimension
Model Specifications
| No. | Model | Motor Volt | Motor Power (KW) | Displacement (ml/r) | System Pressure (MPa) | Rated Speed (RMP) | Tank Capacity (L) |
|---|---|---|---|---|---|---|---|
| 1 | DYDD-1.3YAV-FVBA-20 | 12V DC | 1.5 | 1.3 | 22 | 2500 | 3.4 |
| 2 | DYDD-1.5AAV-FVBA-20 | 12V DC | 1.5 | 1.6 | 20 | 2500 | 6 |
Remarks: Please consult our sales engineer for the different pump displacement, motor power or tank capacity.
