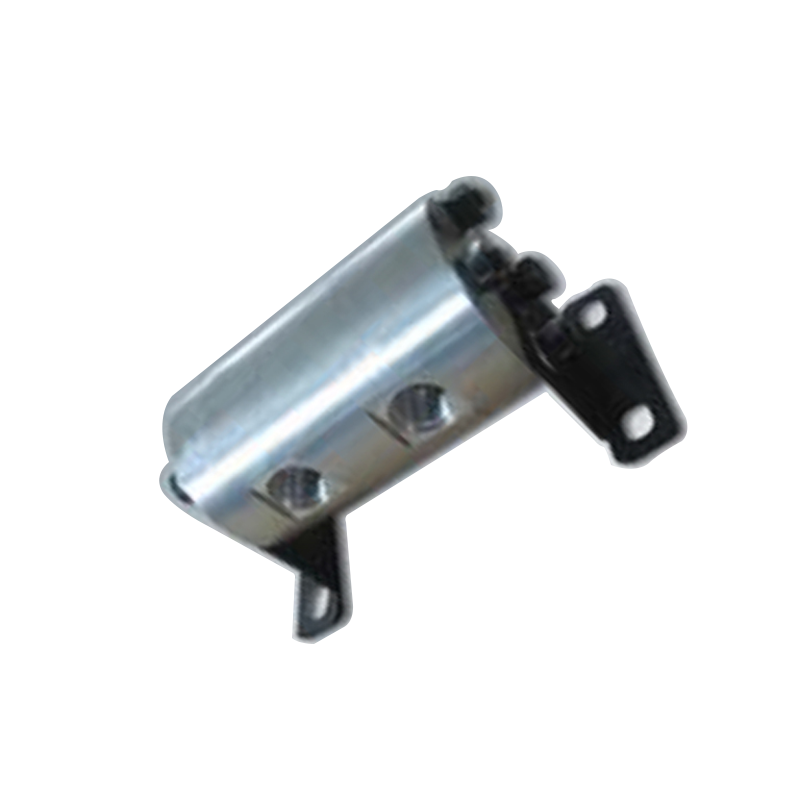

Features:Cycloidal pump, small-displacement, small appearance .
Application:Mainly used in brake system, medium is brake fluid, ensure that the two systems working synchronized(error≤5%).
Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Rotating Speed (r/mm) | Pressure Gap between Inlet and Outlet (MPa) | Oil Port | Minimum Displacement (L/min) | Maximum Displacement (L/min) | A (mm) | B (mm) | C (mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | Inlet | Outlet | ||||||||||
| 1 | CFBC-G1.6 | 1.6 | 20.7 | 24.1 | 2000～3500 | 12.4 | 9/16-18 | 9/16-18 | 3 | 6.4 | 37.3 | 69.3 | 129 |
| 2 | CFBC-G2.1 | 2.1 | 20.7 | 25.1 | 2000～3500 | 12.4 | 3/4-16 | 3/4-16 | 4.5 | 9.5 | 38 | 71.5 | 132 |
| 3 | CFBC-G3.2 | 3.2 | 20.7 | 26.1 | 2000～3500 | 12.4 | 3/4-16 | 9/16-18 | 6.4 | 13.2 | 39.7 | 76.5 | 138.6 |
| 4 | CFBC-G4.2 | 4.2 | 20.7 | 27.1 | 2000～3500 | 12.4 | 7/8-14 | 7/8-14 | 9.5 | 18.9 | 41.2 | 81 | 144.6 |
| 5 | CFBC-G5.3 | 5.3 | 20.7 | 28.1 | 2000～3500 | 12.4 | 7/8-14 | 7/8-14 | 11.4 | 22.7 | 42.9 | 86 | 151.4 |
| 6 | CFBC-G6.4 | 6.4 | 20.7 | 29.1 | 2000～3500 | 11 | 7/8-14 | 7/8-14 | 13.2 | 26.5 | 44.5 | 91 | 158 |
| 7 | CFBC-G7.4 | 7.4 | 20.7 | 29.1 | 2000～3500 | 9 | 7/8-14 | 7/8-14 | 15.1 | 30.3 | 46 | 95.5 | 164 |
| 8 | CFBC-G8.4 | 8.4 | 20.7 | 29.1 | 2000～3500 | 8.3 | 7/8-14 | 7/8-14 | 17 | 34.1 | 47.75 | 100.75 | 171 |
