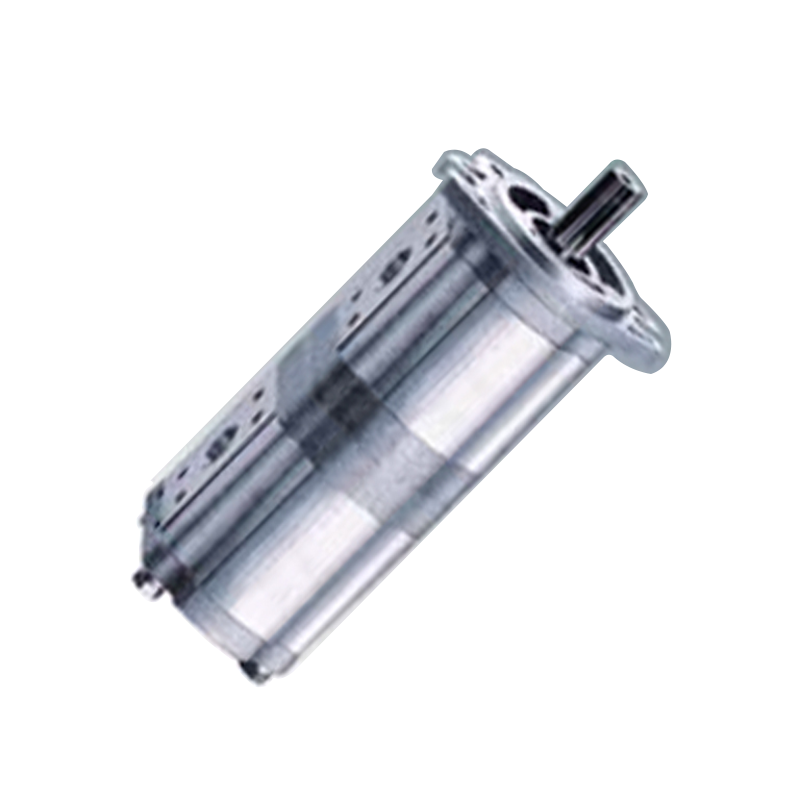

Features:Pressure compensation pump, high working pressure, medium displacement.
Application:Mainly used in engineering machinery, mining machinery, building machineryand so on.
Outline dimensions
Specification
| No. | Type | Fore Pump Displacement (L/min) | Hind PumpDisplacement (L/min) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetric Efficiency (%) | A (mm) | B (mm) | C (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||||
| 1 | CBTSL-G410/410PF | 10 | 10 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 56.6 | 130 | 185.7 |
| 2 | CBTSL-G416/410PF | 16 | 10 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 60 | 136.7 | 192.4 |
| 3 | CBTSL-G416/416PF | 16 | 16 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 60 | 140.1 | 199.1 |
| 4 | CBTSL-G420/410PF | 20 | 10 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 62.2 | 141.2 | 197 |
| 5 | CBTSL-G420/416PF | 20 | 16 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 62.2 | 144.6 | 203.7 |
| 6 | CBTSL-G420/420PF | 20 | 20 | 16 | 21 | 500～4000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 62.2 | 146.8 | 208.2 |
| 7 | CBTSL-G425/410PF | 25 | 10 | 16 | 21 | 500～4000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 65 | 146.8 | 202.6 |
| 8 | CBTSL-G425/416PF | 25 | 16 | 16 | 21 | 500～4000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 65 | 150.2 | 209.3 |
| 9 | CBTSL-G425/420PF | 25 | 20 | 16 | 21 | 500～4000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 65 | 152.4 | 213.8 |
| 10 | CBTSL-G430/410PF | 30 | 10 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 92 | 67.8 | 152.4 | 208.2 |
| 11 | CBTSL-G430/416PF | 30 | 16 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 92 | 67.8 | 155.8 | 215 |
