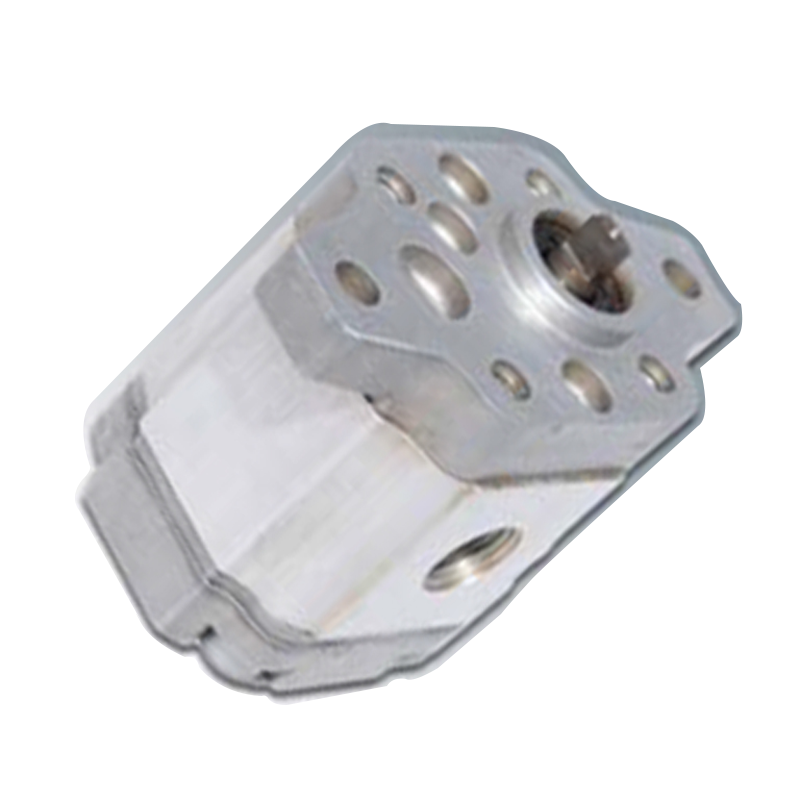

Features:Pressure compensation pump, high working pressure, small-displacement, small appearance.
Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
No. Type Displacement (ml/r) Pressure(Mpa) Rotating Speed (r/mm) Oil Viscosity v50 (Cst) Oil Pollution (Tag) Volumetric Efficiency (%) Weight (kg)
Rated Max
1 CBTQ-G0.17F 0.17 21 28 500～4000 7～70 14/11～19/16 88 0.45
2 CBTQ-G0.25F 0.25 21 28 500～4000 7～70 14/11～19/16 88 0.45
3 CBTQ-G0.45F 0.45 21 28 500～4000 7～70 14/11～19/16 90 0.47
4 CBTQ-G0.57F 0.57 21 28 500～4000 7～70 14/11～19/16 90 0.47
5 CBTQ-G0.76F 0.76 21 28 500～4000 7～70 14/11～19/16 92 0.49
6 CBTQ-G0.98F 0.98 21 28 500～4000 7～70 14/11～19/16 92 0.51
7 CBTQ-G1.27F 1.27 21 28 500～4000 7～70 14/11～19/16 92 0.52
8 CBTQ-G1.52F 1.52 21 28 500～4000 7～70 14/11～19/16 94 0.54
9 CBTQ-F2.30F 2.30 16 21 500～3000 7～70 14/11～19/16 94 0.59
