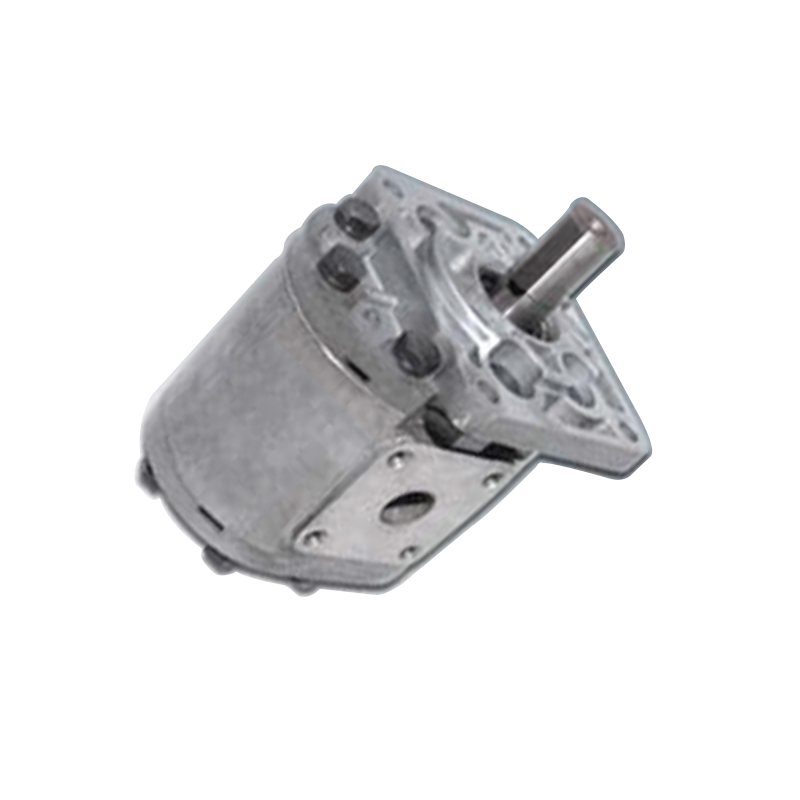

Features:Pressure compensation pump, high working pressure, medium displacement.
Application:Mainly used in engineering machinery, mining machinery, building machineryand so on.
Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Temperature (℃) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Inlet & Outlet Flange | A (mm) | B (mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | φ | Screw Hole | |||||||||||
| 1 | CBT-E520PF | 20 | 16 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 52 | 50 | M8 | 120 | 62 |
| 2 | CBT-E525PF | 25 | 16 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 52 | 50 | M8 | 123 | 62 |
| 3 | CBT-E532PF | 32 | 16 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 62 | 65 | M8 | 128 | 66 |
| 4 | CBT-E540PF | 40 | 16 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 62 | 65 | M10 | 134 | 66 |
| 5 | CBT-E550PF | 50 | 16 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 72 | 76 | M10 | 140 | 71 |
| 6 | CBT-E563PF | 63 | 12.5 | 2000 | 7～70 | -10～70 | 14/11～19/16 | 90 | 72 | 76 | M10 | 148 | 71 |
