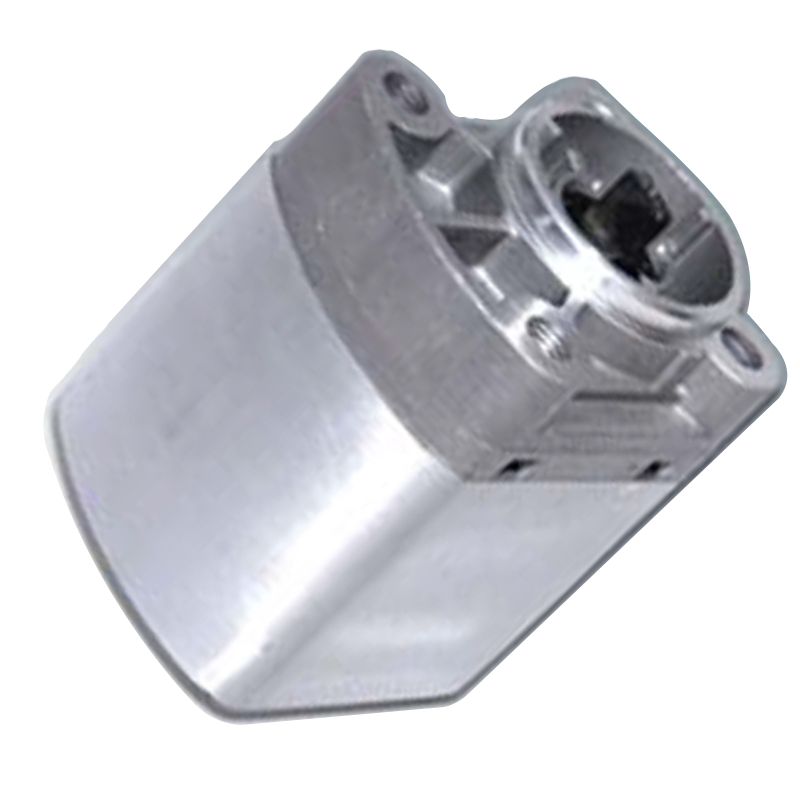

Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances,machine tools ,machine.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | A (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBQH-G1.5F | 1.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 90 | 86.4 |
| 2 | CBQH-G1.7F | 1.70 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 90 | 87.2 |
| 3 | CBQH-G2F | 2.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 88.5 |
| 4 | CBQH-G2.5F | 2.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 90.5 |
| 5 | CBQH-G3F | 3.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 92.6 |
| 6 | CBQH-G3.2F | 3.20 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 93.5 |
| 7 | CBQH-G3.5F | 3.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 94.7 |
| 8 | CBQH-G4F | 4.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 95.8 |
| 9 | CBQH-G4.2F | 4.20 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 97.7 |
| 10 | CBQH-G4.8F | 4.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 100.2 |
| 11 | CBQH-G5.8F | 5.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 104.4 |
| 12 | CBQH-G6.8F | 6.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 108.6 |
