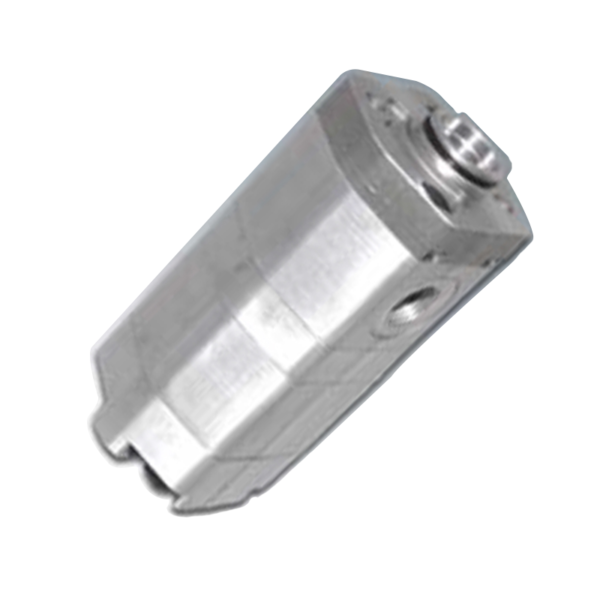

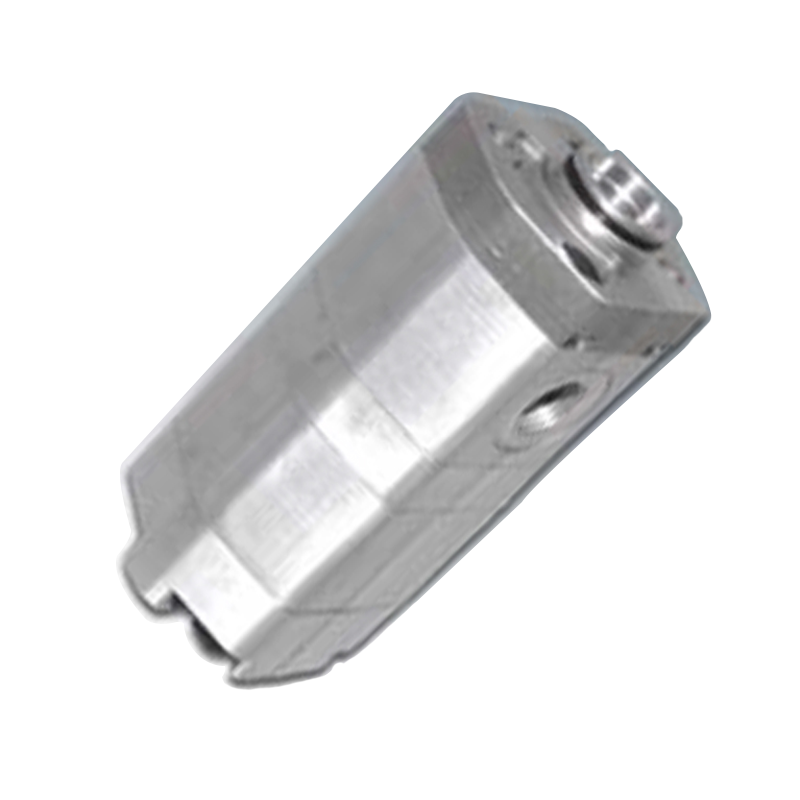

Features:Pressure compensation two-way flow pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances ,machine tools ,machines.
Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | |
|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||
| 1 | CBMSL2-G0.75/*B1 | 0.75/* | 21 | 28 | 500～3000 | 7～70 | 14/11～19/16 | 90 |
| 2 | CBMSL2-G1/*B1 | 1/* | 21 | 28 | 500～3000 | 7～70 | 14/11～19/16 | 90 |
| 3 | CBMSL2-G1.3/*B1 | 1.3/* | 21 | 28 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
| 4 | CBMSL2-G1.6/*B1 | 1.6/* | 21 | 28 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
| 5 | CBMSL2-G1.9/*B1 | 1.9/* | 21 | 28 | 500～3000 | 7～70 | 14/11～19/16 | 92 |
| 6 | CBMSL2-E2.5/*B1 | 2.5/* | 12 | 16 | 500～2000 | 7～70 | 14/11～19/16 | 92 |
| 7 | CBMSL2-E3/*B1 | 3/* | 12 | 16 | 500～2000 | 7～70 | 14/11～19/16 | 92 |
| 8 | CBMSL2-E3.2/*B1 | 3.2/* | 12 | 16 | 500～2000 | 7～70 | 14/11～19/16 | 92 |
| 9 | CBMSL2-D4/*B1 | 4/* | 10 | 12 | 500～1500 | 7～70 | 14/11～19/16 | 92 |
| 10 | CBMSL2-D4.5/*B1 | 4.5/* | 10 | 12 | 500～1500 | 7～70 | 14/11～19/16 | 92 |
| 11 | CBMSL2-D6/*B1 | 6/* | 10 | 12 | 500～1500 | 7～70 | 14/11～19/16 | 92 |
| 12 | CBMSL2-D6.9/*B1 | 6.9/* | 10 | 12 | 500～1500 | 7～70 | 14/11～19/16 | 92 |
| 13 | CBMSL2-D7.8/*B1 | 7.8/* | 10 | 12 | 500～1500 | 7～71 | 14/11～19/17 | 92 |
