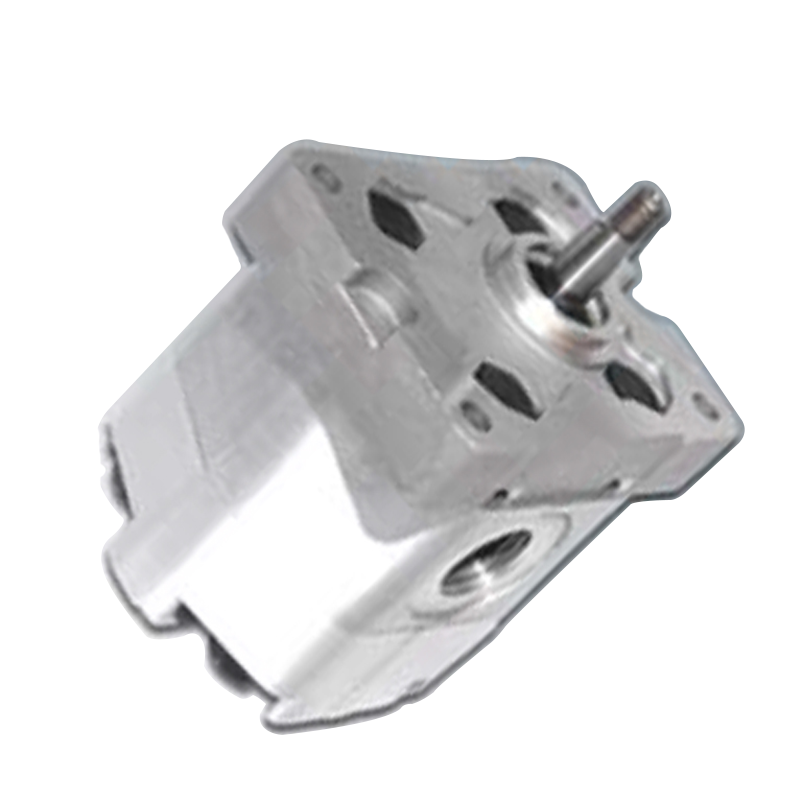

Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances ,machine tools ,machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||||
| 1 | CBM1-G0.75ZF | 0.75 | 21 | 28 | 500~3000 | 7~70 | 14/11~19/16 | 90 | 35.1 | 74 |
| 2 | CBM1-G1ZF | 1.00 | 21 | 28 | 500~3000 | 7~70 | 14/11~19/16 | 90 | 35.6 | 75 |
| 3 | CBM1-G1.3ZF | 1.30 | 21 | 28 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 36.2 | 76.2 |
| 4 | CBM1-G1.6ZF | 1.60 | 21 | 28 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 36.8 | 77.4 |
| 5 | CBM1-G1.9ZF | 1.90 | 21 | 28 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 37.4 | 79 |
| 6 | CBM1-G2.5ZF | 2.50 | 12 | 16 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 38.6 | 81 |
| 7 | CBM1-G3ZF | 3.00 | 12 | 16 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 39.6 | 83 |
| 8 | CBM1-G3.3ZF | 3.30 | 12 | 16 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 40 | 83.8 |
| 9 | CBM1-G4ZF | 4.00 | 10 | 12 | 500~1500 | 7~70 | 14/11~19/16 | 92 | 41.6 | 87 |
| 10 | CBM1-G4.5ZF | 4.50 | 10 | 12 | 500~1500 | 7~70 | 14/11~19/16 | 92 | 42.6 | 89 |
| 11 | CBM1-G6ZF | 6.00 | 10 | 12 | 500~1500 | 7~70 | 14/11~19/16 | 92 | 45.6 | 95 |
| 12 | CBM1-G6.9ZF | 6.90 | 10 | 12 | 500~1500 | 7~70 | 14/11~19/16 | 92 | 47.4 | 98.6 |
| 13 | CBM1-G7.8ZF | 7.80 | 10 | 12 | 500~1500 | 7~70 | 14/11~19/16 | 92 | 49.2 | 102.2 |
