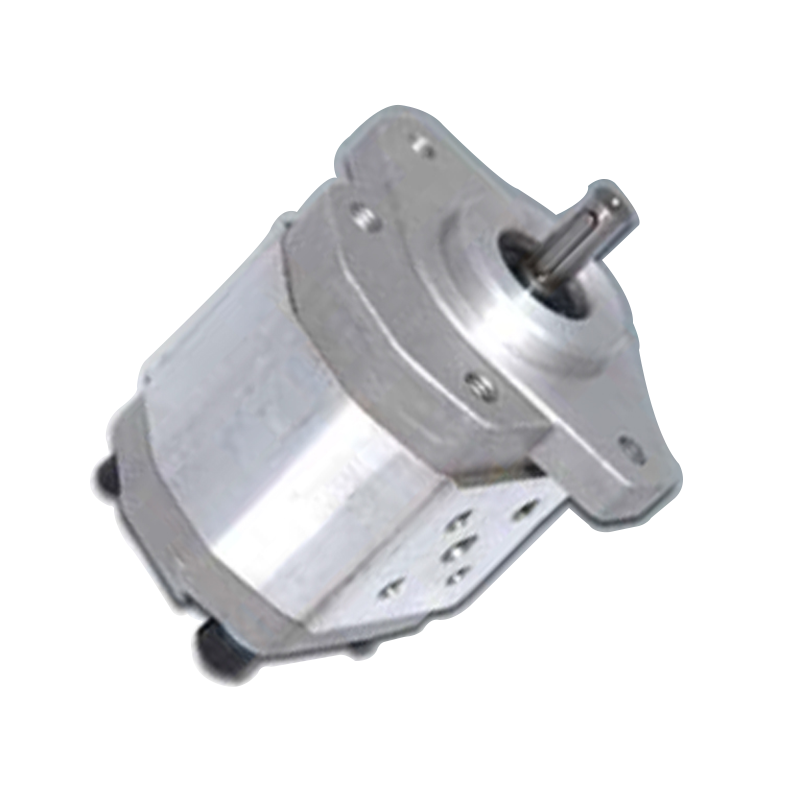

Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in engineering machinery, mining machinery, building machineryand so on.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | A (mm) | B (mm) | D | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | Inlet | Outlet | ||||||||||
| 1 | CBKT1-G1.5PF | 1.50 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 34.2 | 74.2 | 10 | 8 |
| 2 | CBKT1-G2PF | 2.00 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 35.25 | 76.3 | 10 | 8 |
| 3 | CBKT1-G2.2PF | 2.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 35.65 | 77.1 | 10 | 8 |
| 4 | CBKT1-G2.5PF | 2.50 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 36.3 | 78.4 | 10 | 8 |
| 5 | CBKT1-F3PF | 3.00 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 37.35 | 80.5 | 10 | 8 |
| 6 | CBKT1-F4PF | 4.00 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 39.45 | 84.7 | 10 | 8 |
| 7 | CBKT1-F5PF | 5.00 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 41.55 | 88.9 | 10 | 8 |
| 8 | CBKT1-F6PF | 6.00 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | >90 | 43.65 | 93.1 | 10 | 8 |
