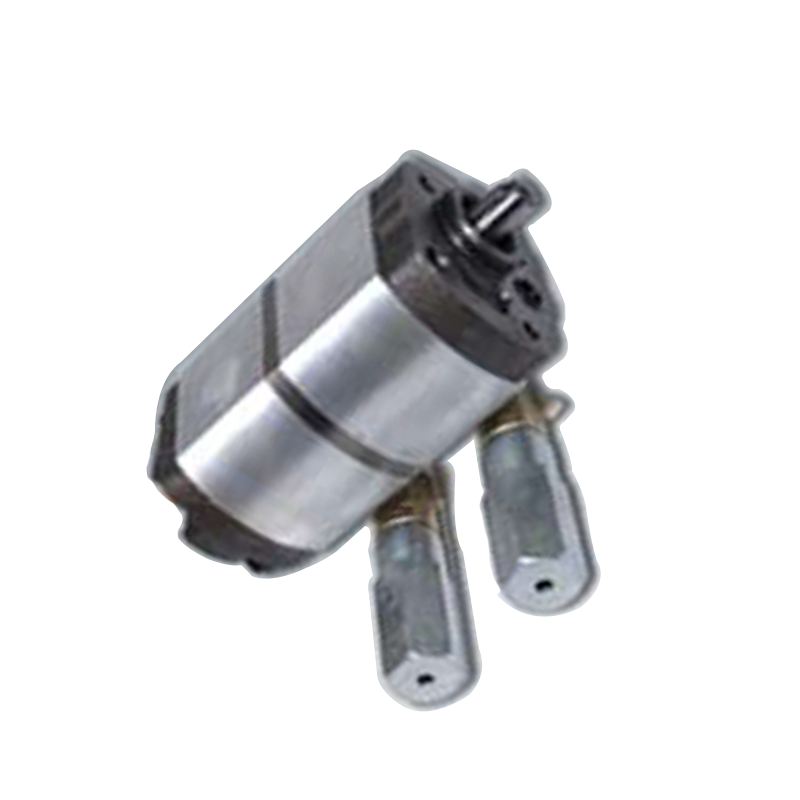

Features:Pressure compensation Hi/low pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | |
|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||
| 1 | CBKSLV-G1.5F* | 1.5/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 90 |
| 2 | CBKSLV-G1.7/* | 1.7/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 90 |
| 3 | CBKSLV-G2F/* | 2/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 4 | CBKSLV-G2.5/* | 2.5/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 5 | CBKSLV-G3V | 3/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 6 | CBKSLV-G3.2/* | 3.2/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 7 | CBKSLV-G3.5/* | 3.5/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 8 | CBKSLV-G4/* | 4/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 9 | CBKSLV-G4.2/* | 4.2/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 10 | CBKSLV-G4.8/* | 4.8/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 11 | CBKSLV-G5.8/* | 5.8/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
| 12 | CBKSLV-G6.8/* | 6.8/* | 21 | 28 | 1500~4000 | 7~70 | 14/11~19/16 | 92 |
