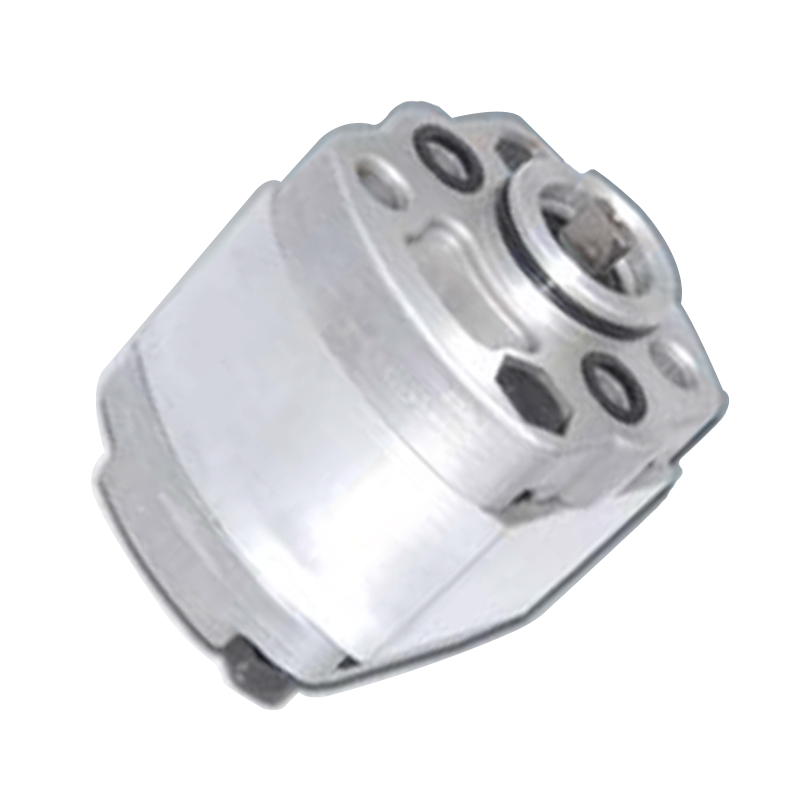

Features:Pressure compensation reversible pump, high working pressure, small-displacement, smallappearance, oil relief inside.
Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | |
|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||
| 1 | CBKS1-G0.75Q | 0.75 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 90 |
| 2 | CBKS1-G1Q | 1.00 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 90 |
| 3 | CBKS1-G1.3Q | 1.30 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 4 | CBKS1-G1.6Q | 1.60 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 5 | CBKS1-G2Q | 2.00 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 6 | CBKS1-G2.5Q | 2.50 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 7 | CBKS1-G3Q | 3.00 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 8 | CBKS1-G3.3Q | 3.30 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 9 | CBKS1-G4Q | 4.00 | 21 | 24 | 500~4000 | 7~70 | 14/11~19/16 | 92 |
| 10 | CBKS1-F4.8Q | 4.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 |
| 11 | CBKS1-F5.8Q | 5.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 |
| 12 | CBKS1-F6.8Q | 6.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 |
