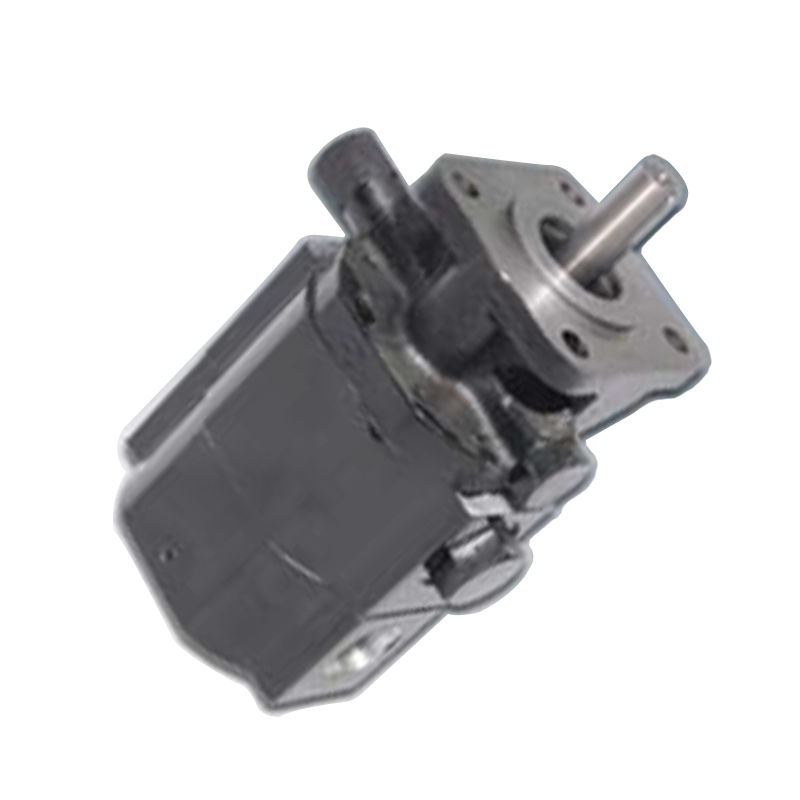

Features:High and low pressure two-way flow pump, can achieve low pressure large flow and highpressure small flow.
Application:Mainly used in log cutter, lifter, hydraulic tools, medical appliances, machine tools,machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBGSL-G*/1.1PFF | */1.1 | 0~3.5 | 0~21 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 65 |
| 2 | CBGSL-G*/1.6PFF | */1.6 | 0~3.5 | 0~21 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 65 |
| 3 | CBGSL-G*/2.1PFF | */2.1 | 0~3.5 | 0~21 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 68 |
| 4 | CBGSL-G*/2.6PFF | */2.6 | 0~3.5 | 0~21 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 68 |
| 5 | CBGSL-G*/3.2PFF | */3.2 | 0~3.5 | 0~21 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 72 |
| 6 | CBGSL-E*/4.2PFF | */4.2 | 0~3.5 | 0~16 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 72 |
| 7 | CBGSL-E*/5.2PFF | */5.2 | 0~3.5 | 0~16 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 76 |
| 8 | CBGSL-E*/6.4PFF | */6.4 | 0~3.5 | 0~16 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 76 |
| 9 | CBGSL-E*/7.4PFF | */7.4 | 0~3.5 | 0~16 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 78 |
| 10 | CBGSL-D*/8.5PFF | */8.5 | 0~3.5 | 0~12 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 78 |
| 11 | CBGSL-D*/9.5PFF | */9.5 | 0~3.5 | 0~12 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 80 |
| 12 | CBGSL-D*/10.6PFF | */10.6 | 0~3.5 | 0~12 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 80 |
| No. | Type | Displacement of Low-pressure Pump (ml/r) | Displacement of High-pressure Pump (ml/r) | Total Displacement(ml/r) | Pressure (MPa) | Power (kw) | A | B | C | K | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Low-pressure Pump | Low-pressure Pump | ||||||||||
| 1 | CBGSL-G4/1.1PF | 4 | 1.1 | 5.10 | 0~3.5 | 0~21 | 1.5 | 155.2 | 95.1 | 57.1 | 3/4-16SAE |
| 2 | CBGSL-G6/1.6PF | 6 | 1.6 | 7.60 | 0~3.5 | 0~21 | 2.2 | 161.4 | 101.3 | 63.3 | 3/4-16SAE |
| 3 | CBGSL-G8.5/1.6PF | 8.5 | 1.6 | 10.10 | 0~3.5 | 0~21 | 2.2 | 170.4 | 110.3 | 72.3 | 3/4-16SAE |
| 4 | CBGSL-G6/2PF | 6 | 2 | 8.00 | 0~3.5 | 0~21 | 3 | 161.4 | 101.3 | 63.3 | 3/4-16SAE |
| 5 | CBGSL-G8.5/2PF | 8.5 | 2 | 10.50 | 0~3.5 | 0~21 | 3 | 170.4 | 110.3 | 72.3 | 7/8-14SAE |
| 6 | CBGSL-G10/2PF | 10 | 2 | 12.00 | 0~3.5 | 0~21 | 3 | 175.4 | 115.3 | 77.3 | 7/8-14SAE |
| 7 | CBGSL-G8/3PF | 8 | 3 | 11.00 | 0~3.5 | 0~21 | 3 | 170.4 | 110.3 | 72.3 | 7/8-14SAE |
| 8 | CBGSL-G16/3PF | 16 | 3 | 19.00 | 0~3.5 | 0~21 | 4 | 196.4 | 136.3 | 98.3 | 7/8-14SAE |
| 9 | CBGSL-G10.6/3.2PF | 10.6 | 3.2 | 13.80 | 0~3.5 | 0~21 | 4 | 177.4 | 117.3 | 79.3 | 7/8-14SAE |
| 10 | CBGSL-D12.7/3.2PF | 12.7 | 3.2 | 15.90 | 0~3.5 | 0~16 | 4 | 185.4 | 125.3 | 87.3 | 7/8-14SAE |
| 11 | CBGSL-D12.6/4.2PF | 12.6 | 4.2 | 16.80 | 0~3.5 | 0~16 | 5 | 185.4 | 125.3 | 87.3 | 7/8-14SAE |
| 12 | CBGSL-D13.6/4.6PF | 13.6 | 4.6 | 18.20 | 0~3.5 | 0~16 | 5 | 192.4 | 128.3 | 90.3 | 7/8-14SAE |
