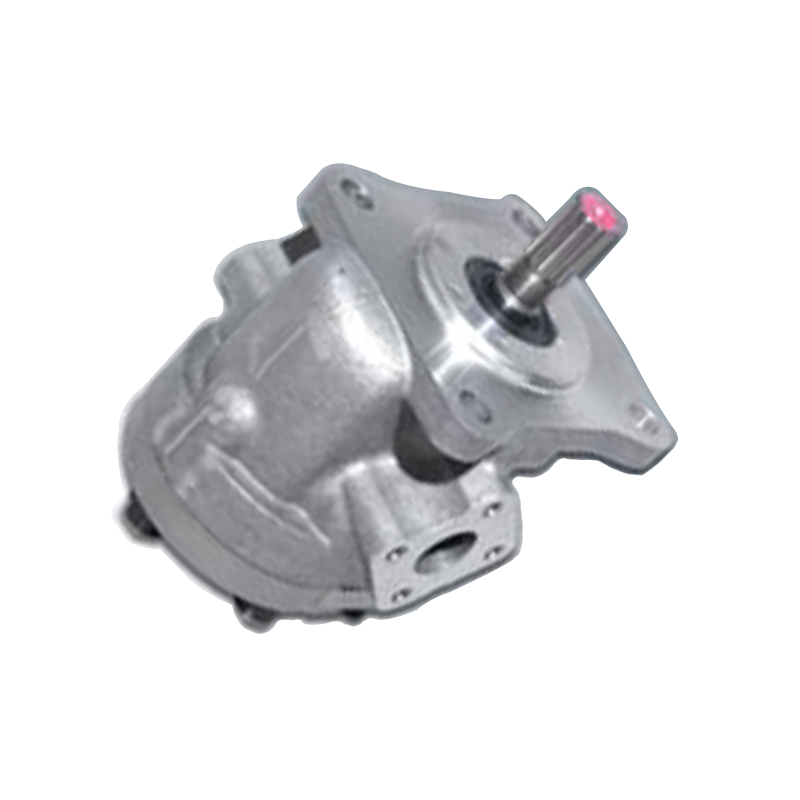

Features:Pressure compensation pump, high working pressure, medium displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medicalappliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CBGPF3-F1F | 1.00 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 40 | 120.5 |
| 2 | CBGPF3-F1.6F | 1.60 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 40 | 120.5 |
| 3 | CBGPF3-F2.1F | 2.10 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 40 | 120.5 |
| 4 | CBGPF3-F2.6F | 2.60 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 40 | 120.5 |
| 5 | CBGPF3-F3.2F | 3.20 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 40 | 120.5 |
| 6 | CBGPF3-F3.7F | 3.70 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 40 | 120.5 |
| 7 | CBGPF3-F5.2F | 5.20 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 40 | 120.5 |
| 8 | CBGPF3-F6.2F | 6.20 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
| 9 | CBGPF3-F7.6F | 7.60 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
| 10 | CBGPF3-F8.5F | 8.50 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
| 11 | CBGPF3-F9.3F | 9.30 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
| 12 | CBGPF3-F10.7F | 10.70 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
| 13 | CBGPF3-F11.5F | 11.5 | 14.7 | 18 | 650~3000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 48 | 136 |
