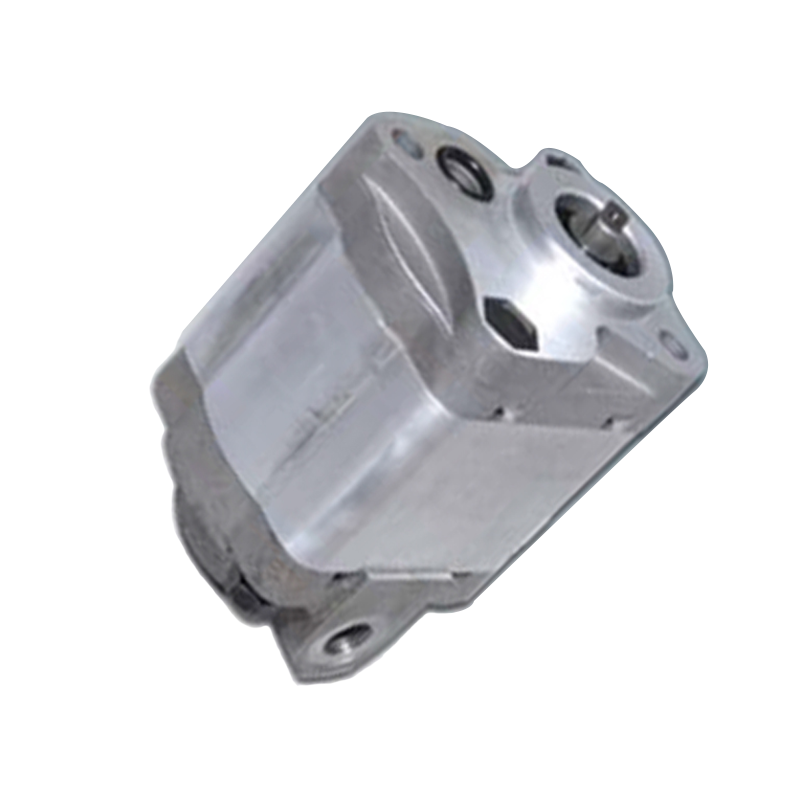

Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medicalappliances,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||||
| 1 | CBGPF1-E0.75 | 0.75 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 90 | 88 | 114.5 |
| 2 | CBGPF1-E1 | 1.00 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 90 | 88.5 | 115 |
| 3 | CBGPF1-E1.5 | 1.50 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 92 | 89.5 | 116 |
| 4 | CBGPF1-E2 | 2.00 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 92 | 91.8 | 118.3 |
| 5 | CBGPF1-E2.2 | 2.20 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 92 | 92.5 | 119 |
| 6 | CBGPF1-E3 | 3.00 | 12.5 | 20 | 500~2500 | 7~70 | 14/11~19/16 | 92 | 95 | 121.5 |
| 7 | CBGPF1-E3.5 | 3.50 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 96.5 | 124 |
| 8 | CBGPF1-E4 | 4.00 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 97.9 | 124.4 |
| 9 | CBGPF1-E4.3 | 4.30 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 99 | 125.5 |
| 10 | CBGPF1-E5 | 5.00 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 101.2 | 127.7 |
| 11 | CBGPF1-E5.5 | 5.50 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 102.9 | 129.4 |
| 12 | CBGPF1-E6.3 | 6.30 | 12.5 | 20 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 105.5 | 132 |
