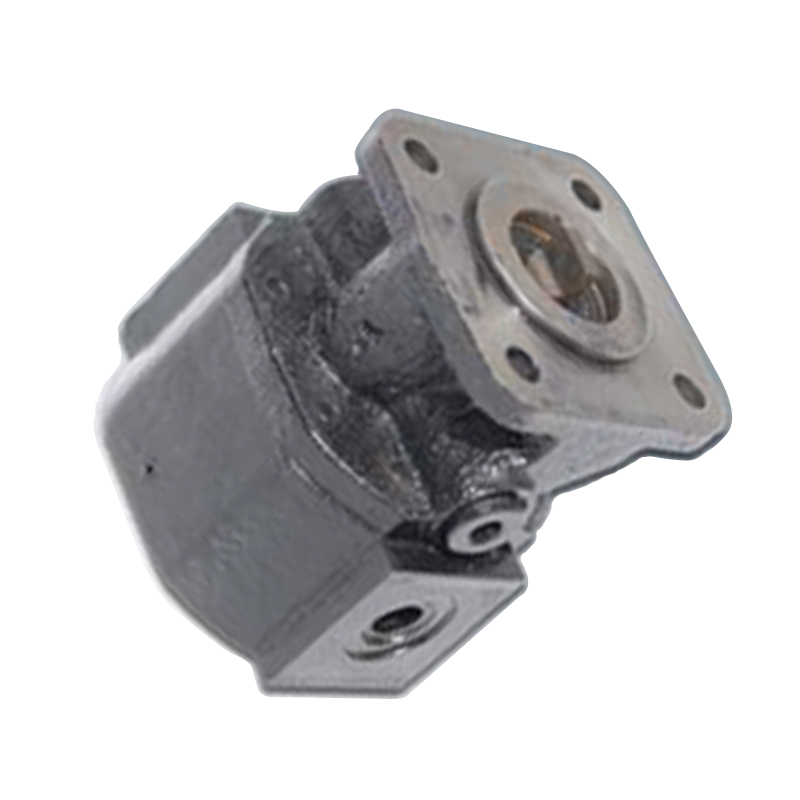

Features:Fixed interval pump, high working pressure, small-displacement, small appearance.
Application:Mainly used in lifter, hydraulic tool, medical appliance, machine tools, machine and so on.
Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetric Efficiency (%) | K1 Port Size | K2 Port Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CBG-G1.1PFF | 1.1 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 65 | SAE9/16-18 | SAE9/16-18 |
| 2 | CBG-G1.6PFF | 1.6 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 65 | SAE9/16-18 | SAE9/16-18 |
| 3 | CBG-G2.1PFF | 2.1 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 68 | SAE9/16-18 | SAE9/16-18 |
| 4 | CBG-G2.6PFF | 2.6 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 68 | SAE3/4-16 | SAE9/16-18 |
| 5 | CBG-G3.2PFF | 3.2 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 72 | SAE3/4-16 | SAE9/16-18 |
| 6 | CBG-F4.2PFF | 4.2 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 72 | SAE3/4-16 | SAE9/16-18 |
| 7 | CBG-F5.2PFF | 5.2 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 76 | SAE7/8-14 | SAE3/4-16 |
| 8 | CBG-F6.4PFF | 6.4 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 76 | SAE7/8-14 | SAE3/4-16 |
| 9 | CBG-F7.4PFF | 7.4 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 78 | SAE7/8-14 | SAE3/4-16 |
| 10 | CBG-E8.5PFF | 8.5 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 78 | SAE7/8-14 | SAE3/4-16 |
| 11 | CBG-E9.5PFF | 9.5 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 80 | SAE7/8-14 | SAE3/4-16 |
| 12 | CBG-E10.6PFF | 10.6 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 80 | SAE7/8-14 | SAE3/4-16 |
