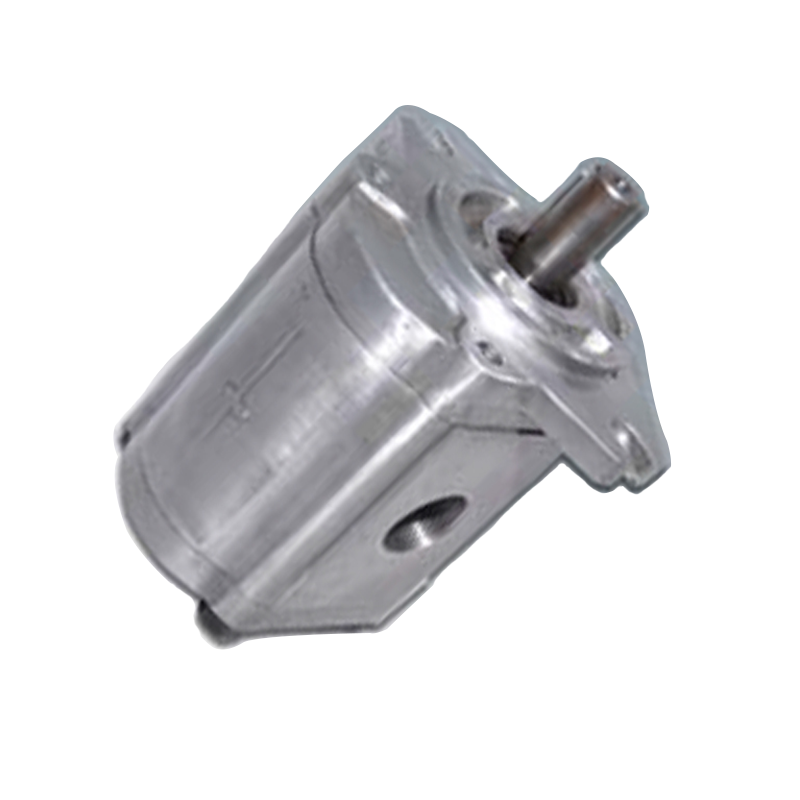

Features:Pressure compensation pump, high working pressure, medium displacement.
Application:Mainly used in engineering machinery, mining machinery, building machineryand so on.
Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetric Efficiency (%) | A (mm) | B (mm) | K1 Port Size | K2 Port Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||||
| 1 | CBF1-E10F | 10 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 91 | 52.5 | 154 | M22*1.5 | M18*1.5 |
| 2 | CBF1-E16F | 16 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 91 | 55.8 | 160.5 | M27*2 | M22*1.5 |
| 3 | CBF1-E18F | 18 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 57 | 163 | M27*2 | M22*1.5 |
| 4 | CBF1-E25F | 25 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 61.3 | 171.5 | M33*2 | M27*2 |
| 5 | CBF1-E32F | 32 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 65 | 178 | M33*2 | M27*2 |
| 6 | CBF1-E40F | 40 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 92 | 69.5 | 188 | M33*2 | M27*2 |
