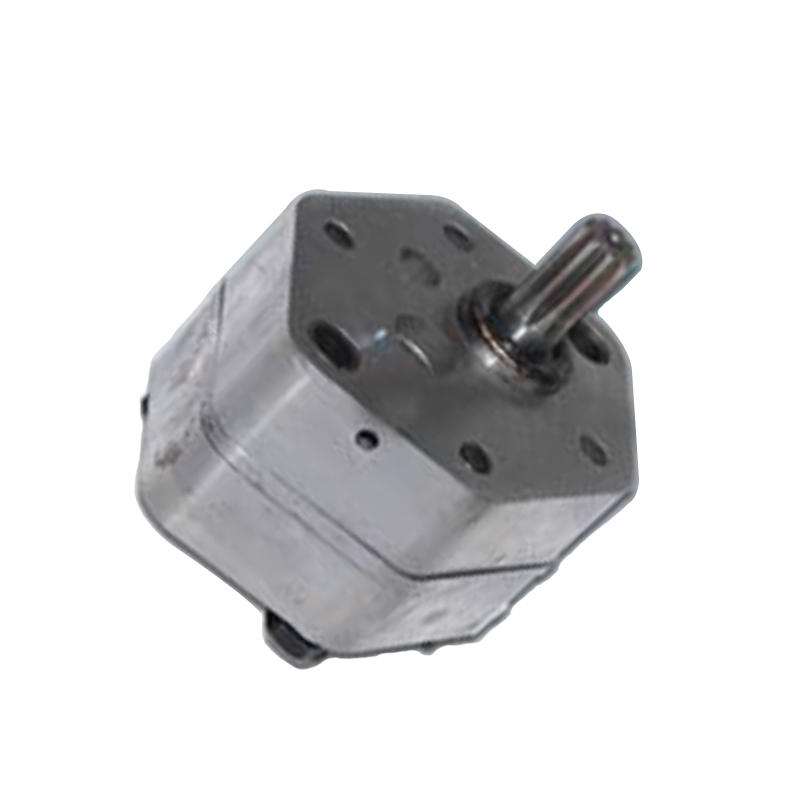

Features: Fixed interval pump, high working pressure, medium displacement, small power loss.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances,machine tools ,machines.
Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetric Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CBF-G1.1F | 1.1 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 65 | 47.8 | 85.1 |
| 2 | CBF-G1.6F | 1.6 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 65 | 49 | 86.3 |
| 3 | CBF-G2F | 2.0 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 68 | 50.6 | 87.9 |
| 4 | CBF-G2.5F | 2.5 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 68 | 52.5 | 89.8 |
| 5 | CBF-G3.1F | 3.1 | 21 | 24 | 500～3000 | 7～70 | 14/11～19/16 | -10～70 | 72 | 54 | 91.3 |
| 6 | CBF-F4F | 4.0 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 72 | 57.8 | 57.8 |
| 7 | CBF-F5F | 5.0 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 76 | 61 | 98.3 |
| 8 | CBF-F6.3F | 6.3 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 76 | 65 | 102.3 |
| 9 | CBF-F7.4F | 7.4 | 16 | 21 | 500～2000 | 7～70 | 14/11～19/16 | -10～70 | 78 | 69 | 106.3 |
| 10 | CBF-E8F | 8.0 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 78 | 72 | 109.3 |
| 11 | CBF-E9.5F | 9.5 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 80 | 77 | 114.3 |
| 12 | CBF-E10.6F | 10.6 | 12 | 16 | 500～1450 | 7～70 | 14/11～19/16 | -10～70 | 80 | 94 | 131.3 |
