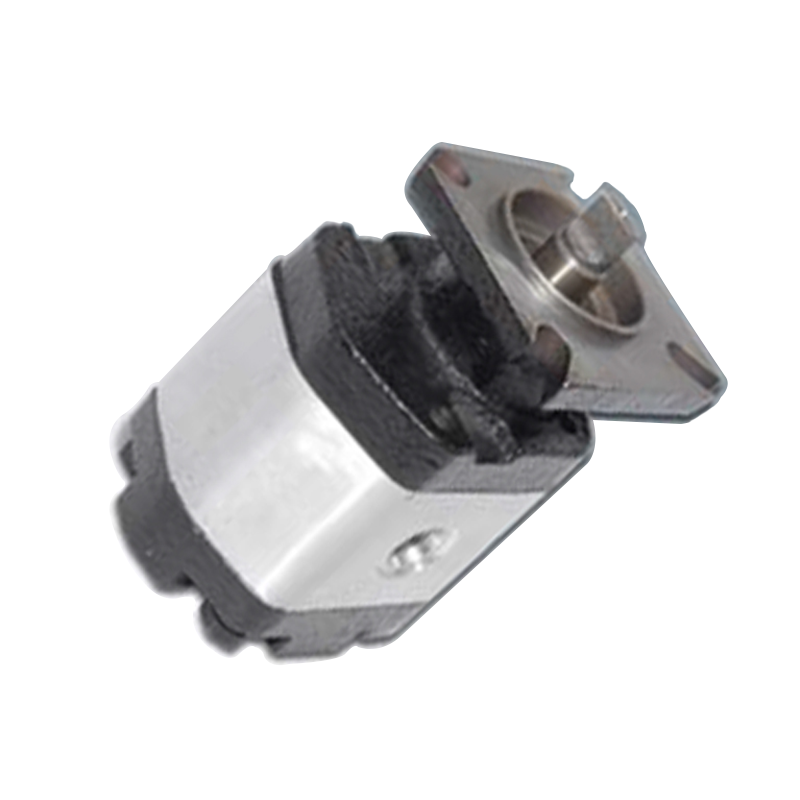

Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances ,machine tools ,machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CB1AQ-G1.2PF | 1.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 107.9 | 115.9 |
| 2 | CB1AQ-G1.6PF | 1.60 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 109.1 | 117.1 |
| 3 | CB1AQ-G2.1PF | 2.10 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 110.5 | 118.5 |
| 4 | CB1AQ-G2.7PF | 2.70 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 111.8 | 119.8 |
| 5 | CB1AQ-G3.2PF | 3.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 113.3 | 121.3 |
| 6 | CB1AQ-F4PF | 4.00 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 117.3 | 125.3 |
| 7 | CB1AQ-F5.2PF | 5.20 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 119.3 | 127.3 |
| 8 | CB1AQ-F6.4PF | 6.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 123.3 | 131.3 |
| 9 | CB1AQ-F7.4PF | 7.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 124.8 | 132.8 |
| 10 | CB1AQ-E8.5PF | 8.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 129.3 | 137.3 |
| 11 | CB1AQ-E9.5PF | 9.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 132.3 | 140.3 |
| 12 | CB1AQ-E10.6PF | 10.60 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 135.3 | 143.3 |
