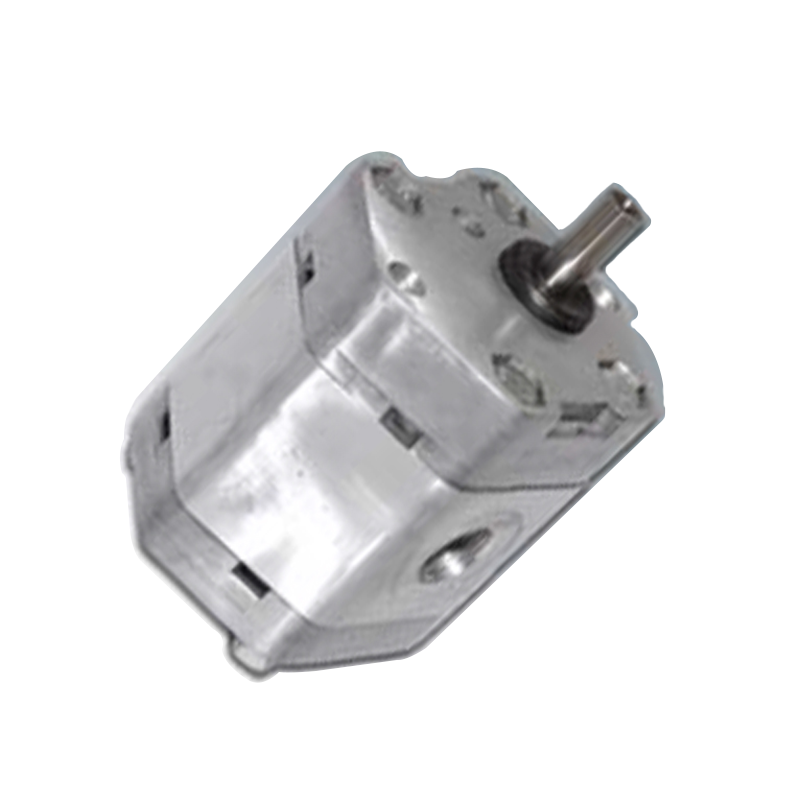

Features: Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances ,machine tools, machines.
Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||||
| 1 | CB-H0.75PLF | 0.75 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 90 | 46.5 | 125 |
| 2 | CB-H1PLF | 1.00 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 90 | 46.5 | 125 |
| 3 | CB-H1.5PLF | 1.50 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 47 | 126 |
| 4 | CB-H2PLF | 2.00 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 48.15 | 128.3 |
| 5 | CB-H2.5PLF | 2.50 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 49 | 130 |
| 6 | CB-H3PLF | 3.00 | 31.5 | 40 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 49.75 | 131.5 |
| 7 | CB-H3.5PLF | 3.50 | 21 | 28 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 50.5 | 133 |
| 8 | CB-H4PLF | 4.00 | 21 | 28 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 49.7 | 131.4 |
| 9 | CB-H4.5PLF | 4.50 | 21 | 28 | 500~2000 | 7~70 | 14/11~19/16 | 92 | 50.5 | 133 |
| 10 | CB-H5PLF | 5.00 | 16 | 21 | 500~1450 | 7~70 | 14/11~19/16 | 92 | 51.25 | 134.5 |
| 11 | CB-H5.5PLF | 5.50 | 16 | 21 | 500~1450 | 7~70 | 14/11~19/16 | 92 | 52.1 | 136.2 |
| 12 | CB-H6.3PLF | 6.30 | 16 | 21 | 500~1450 | 7~70 | 14/11~19/16 | 92 | 53.4 | 138.8 |
